Wooden Edge Banding Machine

Category Cutting Shredding and Gift wraps

Payment Terms	L/C, T/T at sight
Power
Voltage
Stroke
Area

Product Description

Wooden Edge Banding Machine

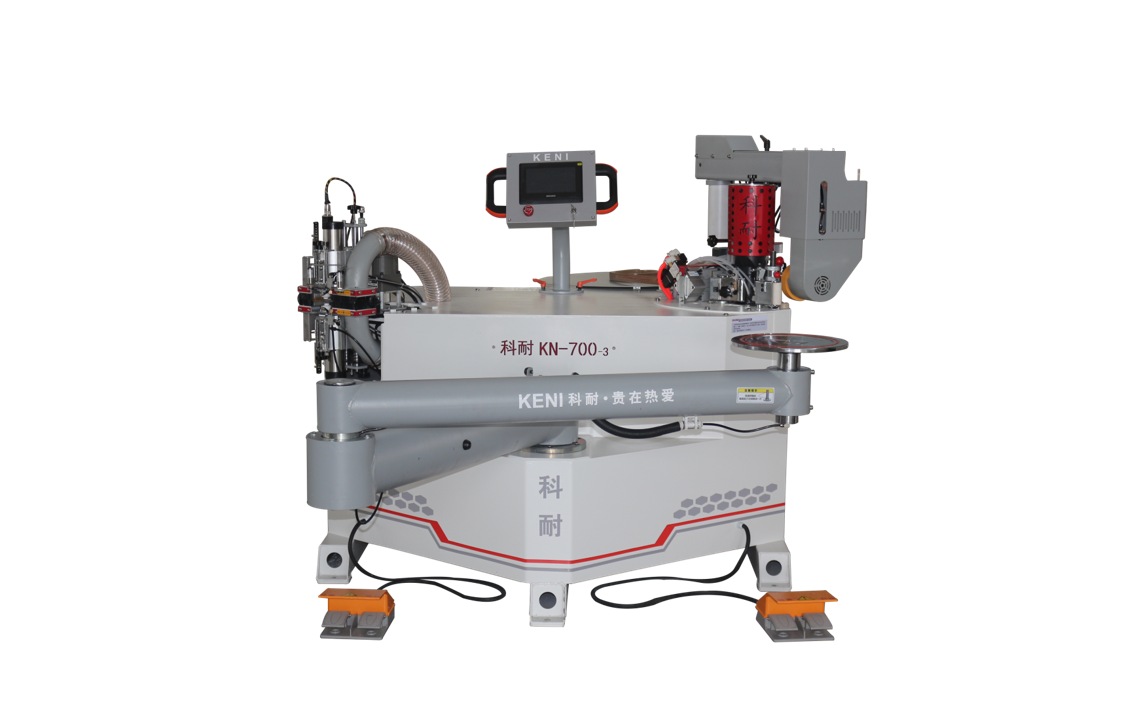

In the world of furniture, when it comes to precise and efficient woodworking, KN700-3 wooden edge banding machines play a vital role. The KN700-3 Curve Edge Banding Machine stands out as a reliable and innovative tool for wooden edge banding in wooden structures. It operates with the power of 6.5 kW and is compatible with 380-volt electricity. It requires 0.6-0.8 MPa of air pressure with a 2L air tank capacity. It has a weight of 770kg.

Appearance

PART A: DETAILS
1	MACHINE	KN700-3 wooden edge banding machines operate with the power of 6.5 kW and are compatible with 380-volt electricity. Requires 0.6-0.8 MPa of air pressure with a 2L air tank capacity. Weight of 770kg.
2	STACKING ARM	About 2250 mm long and comes in a round shape 2 suction cups built into this stacking arm, measuring ϕ400 mm and ϕ90 mm Loading capacity of up to 100 kg, which makes it suitable for industrial scale Bigger arm has a diameter of ϕ165 mm, and the smaller arm with a diameter of ϕ114 mm
3	STRIP	Available in various materials like PVC, ABS, Melamine, and Customized Veneer Widths ranging from 14 to 70mm and thicknesses of 0.5-3mm
4	BOARD SIZE	Handles round panels up to 2.4 meters in diameter, rectangle panels up to 1.22.4m and L shape panels up to 1.41.6m
5	FULLY AUTOMATIC	Features fully automatic feeding, specifically designed for curved board processing, making it ideal for round, oval, and rounded rectangular panels.

PART B: EDGE BANDING
1	GLUE POT	Wooden Edge Banding Machines feature glue pots that support PUR or EVA Glue tank capacity of 2600ml Placed at the top Capable of single-side gluing with a temperature range from 110-210 degrees Celsius Strong and consistent adhesion
2	LASER RANGING PRECISE DOCKING	Exceptional docking error of just ±0.3 mm Requires a minimum board length of 400 mm.
3	BANDING	Supports edge strips with a width range of 14–70 mm Equipped with an auxiliary bonding roller capable of handling minimum curve radii of R≥20 mm Suitable for curved panel applications
4	ROTATION	KN-700-3 Wooden Edge Banding Machine features an advanced rotatable trimming unit Rotate about ± 15 degrees for precise edge banding Ensures smooth and accurate trimming Equipped with automatic features like trimming, scraping, and cleaning.

PART C: EDGE TRIMMING
1	TRIMMING	The wooden edge banding machine operates at a speed range of 0-24 cm/s One of the most advanced wood edge-cutting machines. Integrated with an advanced intelligent trimming system that adjusts the trimming methods based on material width Uses single trim method for narrow bands below 14mm Uses the double trim method for bands of 14-70mm
2	CLEANING	The cleaning system is equipped with two cleaning devices Water-based cleaning liquid is recommended for top-notch cleaning
WARRANTY	Kingsler Machinery provides a one-year warranty on our machine. During the warranty period, spare parts are provided free of charge for non-human factors. Even after the warranty has expired, the manufacturer continues to offer free after-sales solutions, ensuring long-term assistance and customer satisfaction.
