Envelope Making Machine – Clean Output
|
Payment Terms |
L/C, T/T at sight |
Power |
|---|---|
|
Voltage |
|
|
Stroke |
|
|
Area |
Product Description
The ZD-520B No. 10 envelope release paper strip assembly machine is suitable for No. 1-10 Chinese standard seals and similar Chinese envelope paper bags. While processing the envelope, this envelope making machine applies adhesive and sticks a strip of release paper or double-sided tape (PLC servo control) to the sealing area of the envelope for one-time molding. It is an ideal equipment for sealing and pasting paper bags on Chinese envelopes or similar-sized paper bags.
Machine History
In 2009, due to the market demand for self-adhesive sealing of envelopes, our company developed ZD-520BTenth envelope adhesive release paper combination machine (using a reducer for constant speed feeding).
In 2012, the function of double-sided adhesive was improved and added to the original foundation, resulting in the machine becoming a water-based adhesive release paper dual-use No. 10 Chinese combination machine.
In 2015, an improvement was made on this machine by using PLC servo motors to transport release paper double-sided adhesive, Idle shutdown, and paired with a touch screen to set the length of the release paper, greatly improving the machine’s control and reducing the time for plate changing adjustment.
In 2023, due to market demand, the ZD-520B model has added an optional spray hot melt adhesive function. At the same time, the adhesive part adopts a 1 kW servo motor for bonding, a 750 W servo motor for feeding, dual servo matching, and a remote data system, making the machine more intelligent.
Parameter
| S.N | Parameter | Description |
| 1 | Model | ZD-520B |
| 2 | Max Sheet Size | The ZD-520B Envelope Making Machine is capable of handling sheets with maximum dimensions of 125mm * 125 mm * 520 mm |
| 3 | Release Paper Width | Supports the release paper width ranging from 10 to 25 mm |
| 4 | Paper Thickness | Compatible with the paper thickness of 70-20 g |
| 5 | Total Power | The Envelope maker machine operates with the power of 8.2 kW |
| 6 | Total Weight | It has the weight of 3 tons |
| 7 | Dimension | 47550*1280*1750 mm |
Machine Parts
Explanation of machine parts
| S.N | Product | Description |

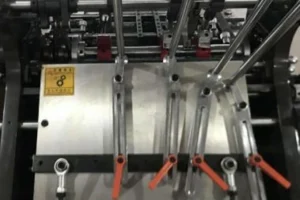

| 1 | Lower Paper Section
|
|

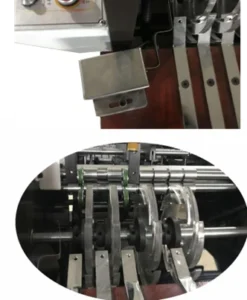

| 2 | Gluing Area
|
|

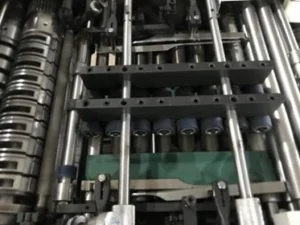

| 3 | Origami Section
|
|
| 4 | Paper receiving area
|
|
Service Guide
1.Fully Equipped
After the envelopes-making machine arrives at the factory, you only need to prepare the wires, and we have fully equipped everything else.
2.Packaging and transportation
Wooden box packaging ensures safe transportation of the machine to your company’s doorstep.
3.Installation/Training
Dispatch professional engineers to provide free on-site assistance in the placement.
installation, debugging, production, training, and other related matters of your machine
4.After sales
The machine comes with a one-year warranty.
Main Products
| S.N | Product | Description |

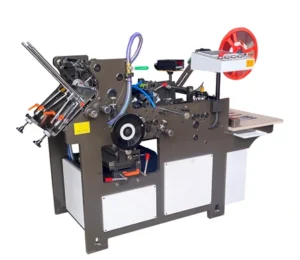

| 1 | Western style envelope maker machine
|
This machine is capable of production of Western style envelope room card sets and other series of product equipment |

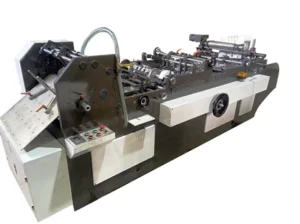

| 2 | Chinese envelopes machine
|
A series of equipment for producing Chinese envelopes, chopsticks, sets, red envelopes, etc |

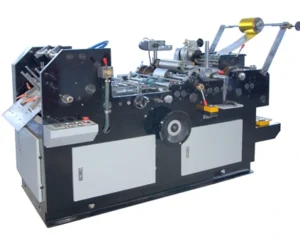

| 3 | Envelope window pasting machine
|
Window sticking machine with film and paper strip function for products weighing less than 200 grams |
FAQs
How to start an envelope business?
To start an envelope business, you need to invest in an envelope-making machine that makes, cuts, and folds envelopes. Additionally, you need manpower to operate the business.
What kind of envelope can the ZD-520B Envelope Maker Machine make?
This machine can make Chinese and Western-style envelopes.
What is the power requirement of this machine?
This machine requires a power consumption of 8.2 kW.
What is the weight of the ZD-520B envelopes making machine?
This machine weights 3 tons.
